16 Door F Spec Cluster Box Unit with Pedestal

16 Door F Spec Cluster Box Unit with Pedestal

16 Door F Spec Cluster Box Unit with Pedestal

Availability:
In stock
SKU
L-CBU-16-FSpec
MSRP: $2,563.00 As low as $2,100.00
You save: $463.00 (18%)
Free Shipping
height
62.562"
width
30.5"
depth
18.875"
weight
114
Standard: usually ships in 2-3 business days
Custom: usually ships in 5-6 days
Learn more about our Estimated Lead Times
Undertanding lead times new
View All from

USPS Approved and Ready

USPS Approved Mailbox

CBU's are Pre-approved

Pre-approved by the USPS, cluster mailboxes are considered the industry standard when it comes to outdoor, centralized mail delivery.

Installation Location

If you are involved in a new construction development, you have probably already consulted or will consult with your local postmaster regarding the placement (location) of your CBU. If not, we recommend it.

Master Lock Installation

After installing the CBU, follow-up with your local post office and the USPS will install their master lock for the main access door. Note: the USPS provides the master lock and only they have the keys to it.

Technical Specifications (Dimensions, etc.)

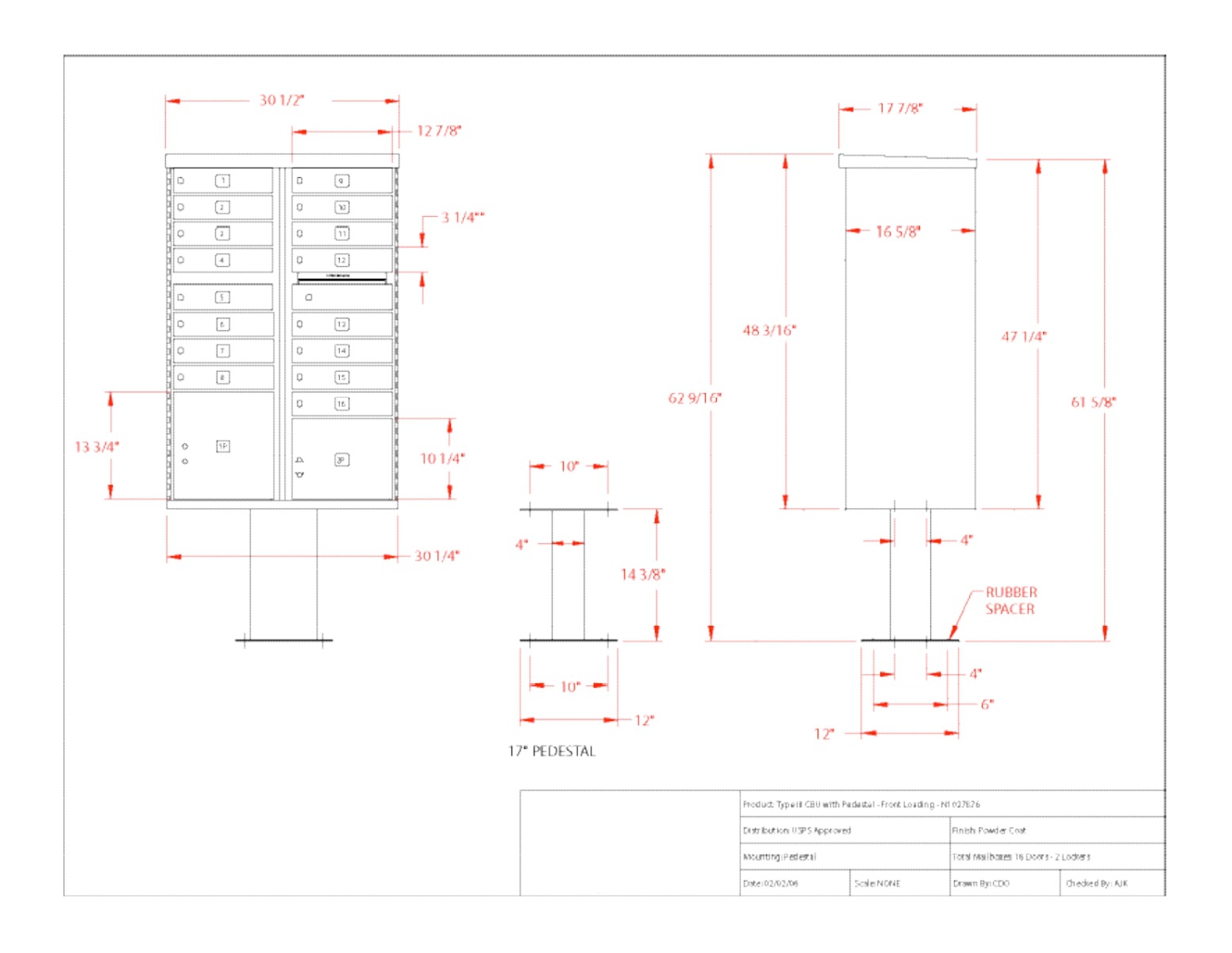

The top of the cluster mailbox (the crown) is 30.5 inches wide by 18.5 inches deep. The cluster box itself measures 30.5 inches wide by 16.75 inches deep by 48.25 inches high. Including the pedestal, the total unit height is 62 inches. For more detailed specifications, please view this Technical Drawing.

16-Door-Spec-Image

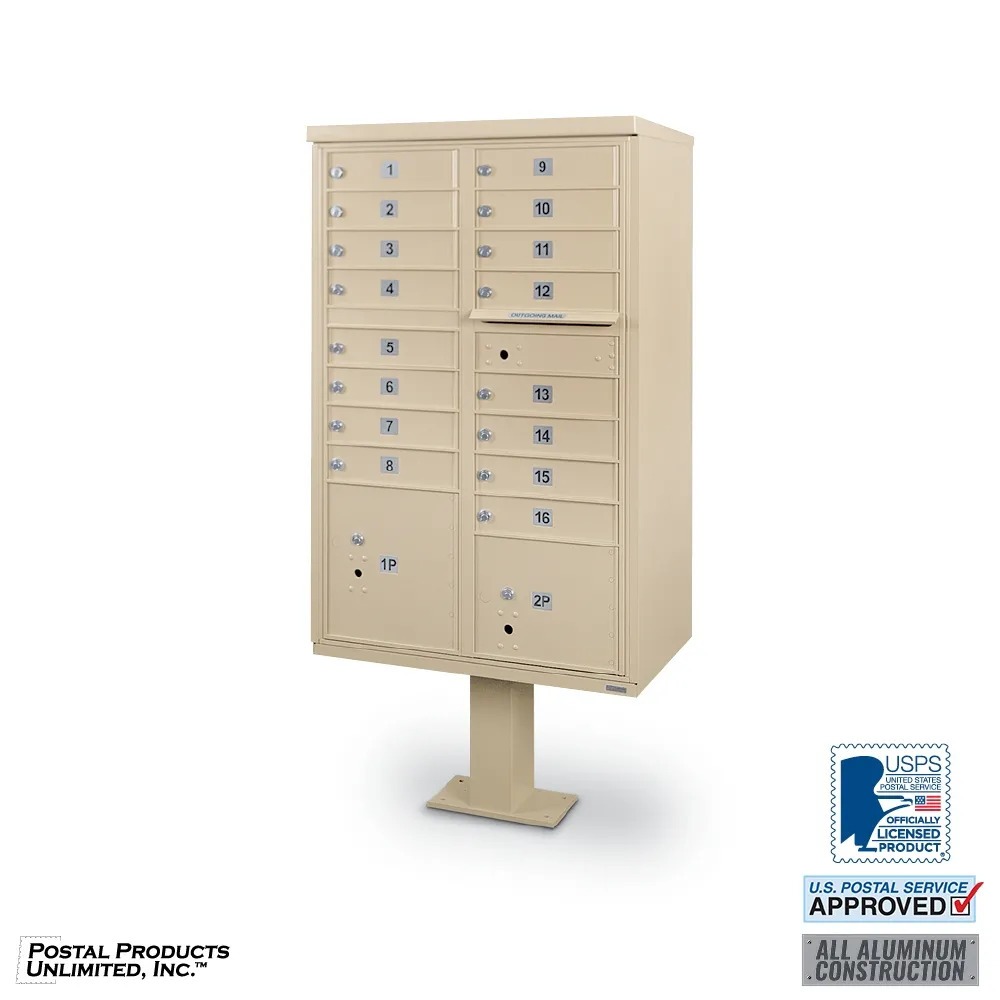

16-Door F-Spec Cluster Box Unit (CBU) with Pedestal

Available in Black, Grey, Bronze, and Sandstone

Cluster Box Units offer an extensive design that guarantees ease of use as well as overall security and protection against vandalism. These 16-door USPS-approved horizontal F-Spec CBUs are designed for use in all weather conditions, ensuring postal customers receive the industry's safest mailboxes. Front-loading outdoor Cluster Box Units provide safe personal mail delivery for many years to come. These high-security cluster mailboxes include a matching pedestal, and are available in four powder-coated finishes — Black, Grey, Bronze, and Sandstone — to complement any property's aesthetic.

Model Compatibility: Identical to Auth-Florence model 1570-16 and Salsbury Industries model 3316. This unit comes complete with tenant locks and pedestal.

Note: Decorative color finishes (Grey, Bronze, Sandstone) ship under standard shipping terms.

Security & Construction Features

  • Stainless steel & aluminum corrosion-resistant construction
  • Reinforced lock cam
  • Larger outgoing mail slot
  • Reduced pry points
  • Improved and stronger tenant gaps
  • 360° wrapped hinges for extra security
  • Durable powder coat finish (available in Black, Grey, Bronze, or Sandstone) resists the elements and protects against vandalism
  • Upgraded security locks developed by the USPS
  • Master doors overlap when shut to prevent theft
  • Locks have dust/rain shield and include 3 keys each
  • ADA compliant design

Specifications

  • Dimensions: 30-1/2" W x 17-7/8" D x 62" H
  • Tenant Doors: 16 doors, each measuring 12-7/8" x 3-1/4"
  • Parcel Compartments: 2 compartments, 10-1/4" and 13-3/4" high
  • Outgoing Mail Slot: 10-3/4" x 1"

For Your Reference

OUR SKU is Budget Select L-CBU-16-FSpec

This item is also sometimes listed under the following manufacturer numbers:

  • CBU-16-BLK
  • CBU-16-BRZ
  • CBU-16-GRN
  • CBU-16-GRY
  • CBU-16-SD
  • CBU-16-WHT
  • 1570-16FGAF
  • 1570-16WHAF
  • 1570-16BKAF
  • 1570-16DBAF
  • 1570-16PGAF
  • 1570-16SDAF
  • 3316BLK-U
  • 3316BRZ-U
  • 3316GRN-U
  • 3316GRY-U
  • 3316SAN-U
  • 3316WHT-U
Weight114 lbs
Shipping InfoStandard: usually ships in 2-3 business days
Custom: usually ships in 5-6 days
Learn more about our Estimated Lead Times
BrandBudget Select
Number of Parcel Lockers2 Parcel Lockers
Number of Mailbox Doors16 Mailbox Doors
Mailbox Mount TypePedestal Mount
Mailbox MaterialAluminum
Mailbox TypeCluster Mailbox
Dimensions62.687 in. H x 30.5 in. W x 18.875 in. D
SecurityLocking
Mail CapacityLarge Packages
Delivery TypeUSPS Delivery
Access TypeFront Loading
Height62.562"
Width30.5"
Depth18.875"
Shipping EstimateStandard: usually ships in 2-3 business days
Custom: usually ships in 5-6 days
Learn more about our Estimated Lead Times
Stock StatusIn Stock
Ships ToShips to the 48 contiguous United States. For AK or HI delivery, please contact us for a shipping quote.
Ship MethodShips via Freight Carrier - Scheduled Delivery
